# [DOM Block Clustering for Enhanced Sampling and Evaluation](http://dx.doi.org/10.1145/2745555.2746649)
### <a id="presentedby">Simon Harper</a>, Anwar Ahmad Moon, Markel Vigo, Giorgio Brajnik, and Yeliz Yesilada.

### W4A 2015 -- Florence, Italy

.asidenb[
**Slides**: http://goo.gl/EuR8Md
]
---

name: uomtemplate
uom-image: css/L_shape_col_white_background.png
iam-image: css/iam.png

title: DOM Block Clustering for Enhanced Sampling and Evaluation
presenter: [@sharpic](http://twitter.com/sharpic)
doi: http://dx.doi.org/10.1145/2745555.2746649
this: - [Paper](http://dx.doi.org/10.1145/2745555.2746649) / [Presentation](http://goo.gl/EuR8Md)
presentation: http://goo.gl/EuR8Md
bib: http://sharpic.github.io/DOMBlockClustering/DOMBlockClustering.bib
data: https://bitbucket.org/amoon/webevaluation
code: https://bitbucket.org/amoon/webevaluation
venue: W4A 2015 -- Florence, Italy

layout: true
class: left, middle
.uomi[<img class="banner" src="{{uom-image}}" width="100%">]
.iami[<img class="banner" src="{{iam-image}}" width="100%">]
.footer[{{presenter}} | [{{title}}]({{doi}}) {{this}} | {{venue}}]
## {{focus}}

---

template:	uomtemplate
section:	Foundation (1/5)
focus:		Rationale
.sections[{{section}}]

1. **Crawling** builds a population 'demographic';

1. think website **Census**;

1. but we can't test all pages;

1. census enables an accurate **Representative Sample** to be drawn; and

1. our 'demographic' is based on structure similarity.

.asidenb[
### Let's 'Flip' the presentation
]

---

template:	uomtemplate
section:	Results (2/5)
focus:		Arts Domain
.sections[{{section}}]

.center[<img src="figures/arts_3.png" width="54%">]

---

template: 	uomtemplate
section: 	Results (2/5)
focus:		Health Domain
.sections[{{section}}]

.center[<img src="figures/health_3.png" width="54%">]

---

template: 	uomtemplate
section: 	Results (2/5)
focus:		News Domain
.sections[{{section}}]

.center[<img src="figures/news_3.png" width="54%">]

---

template: 	uomtemplate
section: 	Results (2/5)
focus:		Sports Domain
.sections[{{section}}]

.center[<img src="figures/sports_3.png" width="54%">]

---

template: 	uomtemplate
section: 	Results (2/5)
focus:		Teens Domain
.sections[{{section}}]

.center[<img src="figures/teens_3.png" width="54%">]

---

template: 	uomtemplate
section: 	How (3/5)
focus:		Creating the Demographic
.sections[{{section}}]

.center[<img src="figures/flow1s.png" width="60%">]

---

template: 	uomtemplate
section: 	How (3/5)
focus:		DOM Block Clustering #1
.sections[{{section}}]

- We ignore non HTML pages and fault pages;

- a DOM object is an XML document without any values or content;

- each XML node represents one HTML tag in a Web page;

- DOM objects only contain those nodes which are required for evaluation;

- the effect of DOM set changes negates the re-crawl;

---

template: 	uomtemplate
section: 	How (3/5)
focus:		DOM Block Clustering #2
.sections[{{section}}]

- equivalence relation we compute between feature sets;

- and the definition of such a relation tells us;

- which elements of the DOM are relevant and which are not;

- after removing the non-relevant elements...

- "two pages are considered to belong to the same demographics if their sequence of elements in the DOM is the same".

---

template: 	uomtemplate
section: 	How (3/5)
focus:		Clustering Example
.sections[{{section}}]

````
1:<div><img><div><a><a><div><ul><li><li></ul></div>
s2:<div><div><a><div><ul><li><li></ul></div>
s3:<div><a><div><img><div><ul><li><li></ul></div>
````

If ````<a>```` and ````<img>```` were considered non-relevant because of a particular criteria, according to our approach the above sequences would belong to the same demographics as the three sequences would be:

````
d0:<div><div><div><ul><li><li></ul></div>
````

---

template: 	uomtemplate
section: 	How (3/5)

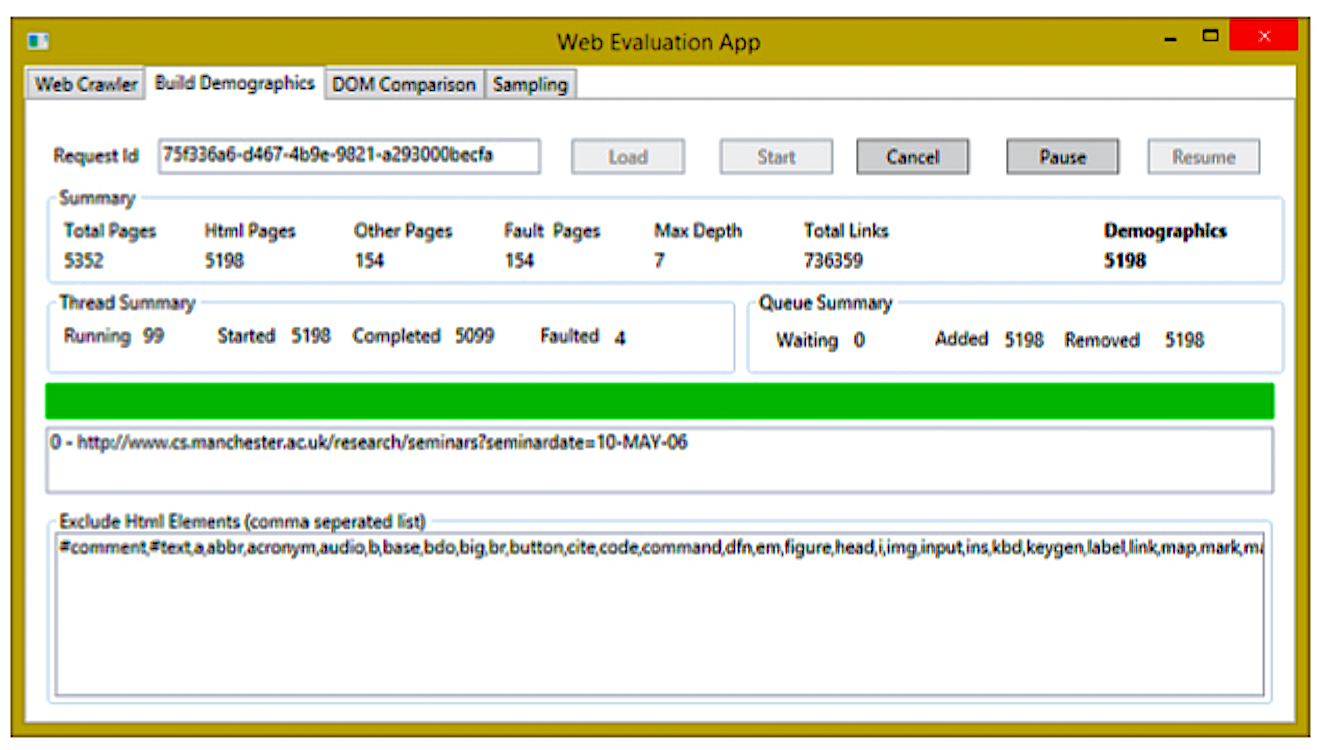

focus:		Clustering Tool
.sections[{{section}}]

.center[<img src="figures/demographics1s.jpg" width="75%">]

---

template: 	uomtemplate
section: 	Related Work (4/5)
focus:		Website Accessibility Conformance Evaluation Method
.sections[{{section}}]

.aside[E. Velleman and T. Van Der Geest. Page sample size in web accessibility testing: how many pages is enough? In Proc. of ASSETS’ 13, page 61.]

### Phase #1 - Identify...
- Ad-hoc Sample Common Web pages (pages like the home, login, sitemap, help, contacts),

- pages with essential functionalities (those supporting focal use cases),

- different types of pages (in terms of layout, templates, appearance, behaviour, coding style), and

- pages based on different auxiliary technologies (such as SVG, MathML, PDF).

---

template: 	uomtemplate
section: 	Related Work (4/5)
focus:		Website Accessibility Conformance Evaluation Method
.sections[{{section}}]

.aside[E. Velleman and T. Van Der Geest. Page sample size in web accessibility testing: how many pages is enough? In Proc. of ASSETS’ 13, page 61.]

### Phase #2 - Select...
- Structured sample on the basis of Phase #1,

- a second random sample of size at least 10% of the structured sample has also to be defined.

- "close" under the notion of complete process: if any page in the two samples is part of a process (such as purchase of a product) then all the pages supporting that process need to be added to the sample.

---

template: 	uomtemplate
section: 	Related Work (4/5)
focus:		Website Accessibility Conformance Evaluation Method
.sections[{{section}}]

.aside[E. Velleman and T. Van Der Geest. Page sample size in web accessibility testing: how many pages is enough? In Proc. of ASSETS’ 13, page 61.]

### Results
- 60 Websites / Total of 47,000 Pages

- Average Pages per site is 793 / 10% 79 pages per site

- **10% of structured sample - without Demographics**

<blockquote>
13 common pages one captures at least 60% of the unique issues. When using the 13 common pages with additional 10 random ones, one captures at least 80% of the issues. With 13 common pages and 20 random ones, one reaches 99%
</blockquote>
---

template: 	uomtemplate
section: 	Related Work (4/5)

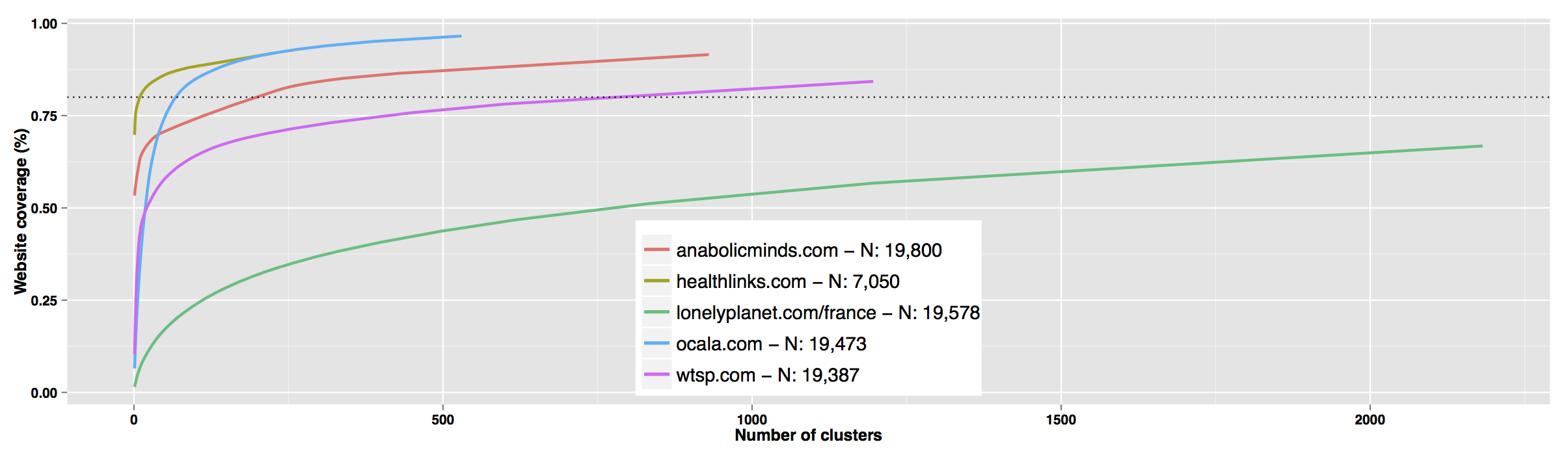

focus:		Results Redux
class: left, top

.sections[{{section}}]

.tab[

|**Category**  | **URL**                                            | ** Pages**  | ** Unclassified**  | ** Clusters** |  **Accounting for 80%**|
|--------------|----------------------------------------------------|-------------:|---------------------:|---------------------:|---------------------------:|
|<span style="color: magenta; padding: 3px;">Arts</span>          | [wtsp.com](http://www.wtsp.com)                               | 19387        | 3048 (16%)           | 1196 (6%)            | 782 (4%)                   |
|<span style="color: olive; padding: 3px;">Health </span>       | [healthlinks.com](http://www.healthlinks.com)                 | 7050         | 582 (8%)             |230 (3%)              | 10 (0.1%)                  |
|<span style="color: cyan; padding: 3px;">News</span>          | [ocala.com](http://www.ocala.com)                             | 19473        | 668 (3.4%)           |530 (2.7%)            |68 (0.3%)                   |
|<span style="color: orange; padding: 3px;">Sports</span>        | [anabolicminds.com](http://www.anabolicminds.com)             | 19800        | 1676 (8.5%)          |930 (4.7%)            |199 (0.1%)                  |
|<span style="color: green; padding: 3px;">Teens</span>         | [lonelyplanet.com/france](http://www.lonelyplanet.com/france)| 19578        | 6504 (33%)           | 2180 (11%)           | n/a                        |
]

.fig[<img src="figures/summary.png" width="88%">]

---

template: 	uomtemplate
section: 	Related Work (4/5)
focus:		All the Background you Need!
.sections[{{section}}]

- Background Treatise - [G. Brajnik. The Troubled Path of Accessibility Engineering: an Overview of Traps to Avoid and Hurdles to Overcome, SIGACCESS Newsletter 100, June 2011 http://portal.acm.org/citation.cfm?id=1982573](http://portal.acm.org/citation.cfm?id=1982573)

- Get the BibTex for the Paper and Presentation at: {{bib}}

---

template: 	uomtemplate
section: 	Wrapping-Up (5/5)
focus:		Limitations, Conclusions, & Future Work
.sections[{{section}}]

- Save crawl time by using the [Common Crawl http://commoncrawl.org/](http://commoncrawl.org/)

- Address Clustering similarity;

- Move away from self wrapped diff;

- aim to create more holistic clusters;

- **Good initial results (dirty code)**,

- but there is scope for improvement, so

- new Doctoral Project based on this work.

---

title: DOM Block Clustering for Enhanced Sampling and Evaluation
presenter: [@sharpic](http://twitter.com/sharpic)
doi: http://dx.doi.org/10.1145/2745555.2746649
this: - [Paper](http://dx.doi.org/10.1145/2745555.2746649) / [Presentation](http://goo.gl/EuR8Md)
presentation: http://goo.gl/EuR8Md
bib: http://sharpic.github.io/DOMBlockClustering/DOMBlockClustering.bib
data: https://bitbucket.org/amoon/webevaluation
code: https://bitbucket.org/amoon/webevaluation
venue: W4A 2015 -- Florence, Italy

layout: true
class: centre, top, inverse
uom-image: css/L_shape_col_white_background.png
iam-image: css/iam-inverse.png

.uomi[<img class="banner" src="{{uom-image}}" width="100%">]
.iami[<img class="banner" src="{{iam-image}}" width="100%">]

[![DOI](https://zenodo.org/badge/4300/sharpic/DOMBlockClustering.svg)](http://dx.doi.org/10.5281/zenodo.17437)

# Thanks!
# Questions? What Am We Missing?
## [DOM Block Clustering for Enhanced Sampling and Evaluation](http://dx.doi.org/10.1145/2745555.2746649)
### <a id="presentedby">Simon Harper</a>, Anwar Ahmad Moon, Markel Vigo, Giorgio Brajnik, and Yeliz Yesilada.

### W4A 2015 -- Florence, Italy

.asidenb[
- Paper at: {{doi}}
- Code/Data at: {{code}}
- Refs at: {{bib}}
- Presentation  at: {{presentation}}
]

---
